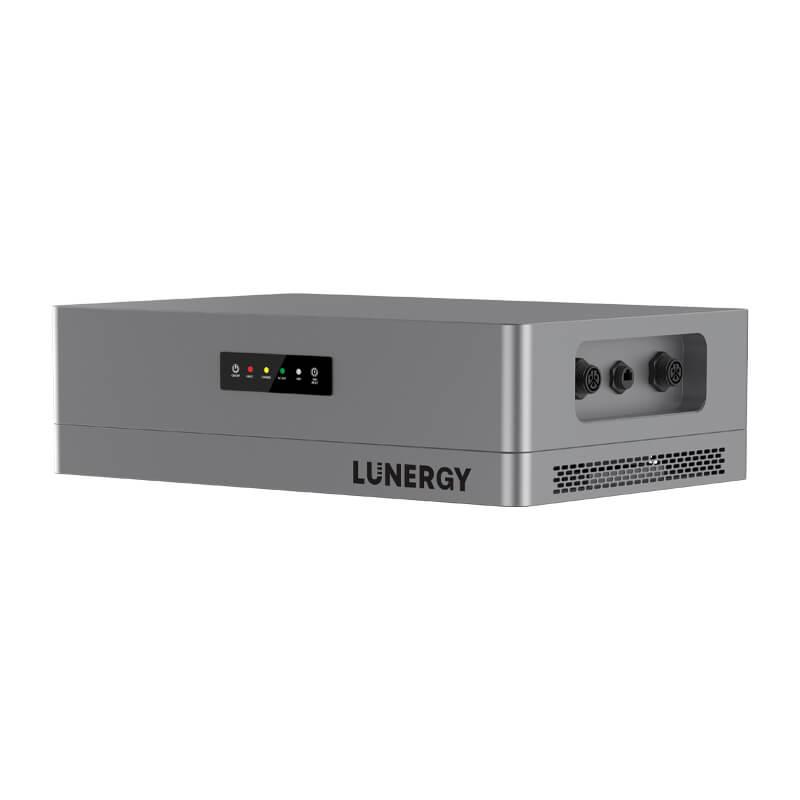

Lunergy Hub 2400 AC

The Lunergy Hub 2400 AC is the intelligent core of the Lunergy energy system and, in combination with the Lunergy BP5200 batteries, forms the foundation of a scalable plug-in home battery solution. The system operates fully AC-coupled and integrates seamlessly with your existing solar installation, without requiring modifications to your PV inverter.

Using real-time P1 data, the Hub continuously analyzes current consumption and available solar energy. When surplus energy is available, the connected battery is charged automatically; when consumption increases or electricity tariffs change, stored energy is deployed accordingly. This increases self-consumption and ensures that your generated solar energy is used when it truly makes a difference.

Connected via a wall outlet, the Hub delivers up to 800 W as standard and can be used immediately as an accessible plug-in solution. To unlock higher performance, the Hub can be connected to a dedicated circuit in the distribution board and the power upgrade activated via the app. In that configuration, the system delivers up to 2.4 kW of continuous output power, with peak output up to 4.8 kW. This allows the Hub not only to support base consumption but also to manage higher loads in a controlled manner.

The Hub is designed as a modular base unit and supports up to three BP5200 batteries, enabling total storage capacity to be expanded to 15.36 kWh. The system grows step by step with your energy demand while remaining structured and manageable.

In addition to smart energy management, the Hub also provides reliability. The integrated AC off-grid output switches within less than 10 milliseconds during a power outage, ensuring that essential appliances remain operational. With a maximum output of 2.4 kW, multiple critical loads can be supported simultaneously.

Thanks to its IP65-rated enclosure and noise level below 45 dB, installation is possible in locations such as a garage, technical room, or covered outdoor area. The combination of usable power, scalable storage, and integrated backup functionality makes the Lunergy Hub 2400 AC a stable and future-oriented foundation for intelligent energy management within a modular system.

Please note: For output power above 800 W, we recommend connecting the system to a dedicated circuit in the distribution board that is not shared with other appliances. This should be checked or installed by a certified electrician.
