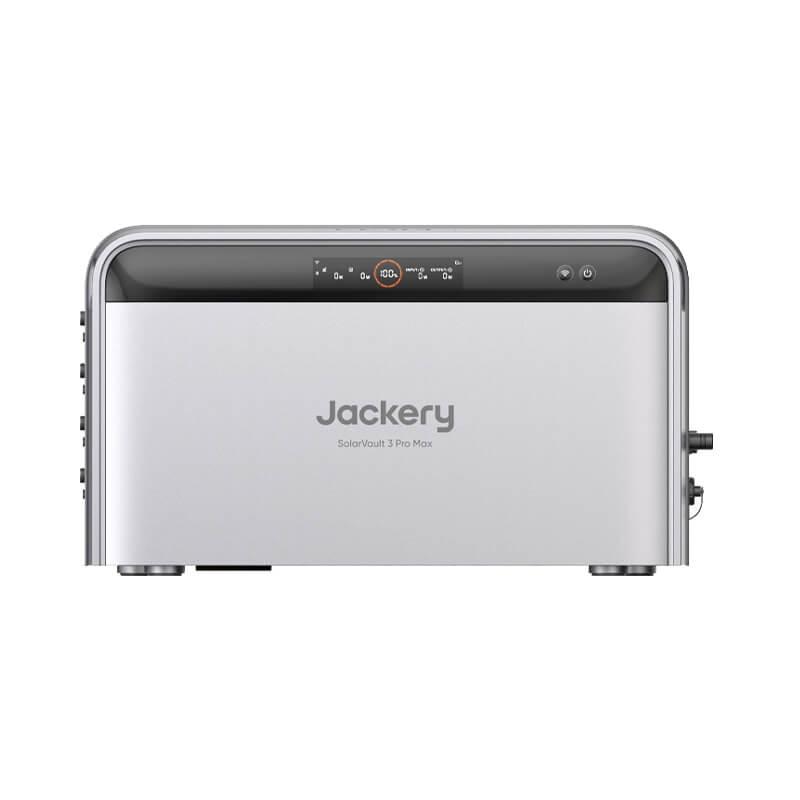

Jackery SolarVault 3 Pro Max | 2,5 kW - 2,52 kWh

During the day, your solar panels often generate more energy than you use directly. The surplus is fed back into the grid, while in the evening you draw electricity from the grid again. With the SolarVault 3 Pro Max, you store that energy first and use it later when your household benefits from it most. The SolarVault 3 Pro Max is a home battery to which solar panels can be connected directly, while its higher AC power allows multiple appliances to operate simultaneously.

The SolarVault 3 Pro Max is designed for households where energy storage plays a larger role in overall electricity consumption. The system supports not only essential loads such as lighting, cooling and internet equipment, but also situations where multiple appliances are used at the same time.

2500W Bidirectional AC Power

The SolarVault 3 Pro Max features 2500W of bidirectional AC power per unit.* This means the system can not only charge efficiently during low electricity tariffs, but also continuously discharge up to 2500W to your home.

In practice, this is sufficient to support multiple household appliances simultaneously. Think of lighting, refrigerator, freezer and internet, while at the same time a kettle, microwave or washing machine is running. The system therefore covers a significant portion of daily electricity consumption.

For larger installations, up to three Pro Max units can be connected in parallel. Together, they deliver up to 7500W of AC output. This transforms the system into a powerful energy supply solution within the home, suitable for higher simultaneous loads.

4000W Solar Input with 4 MPPT

The SolarVault 3 Pro Max supports up to 4000W of solar input via four independent MPPT inputs. Multiple roof orientations or panel groups can be optimized individually, ensuring stable performance under varying conditions.

Up to 15.12 kWh Storage Capacity

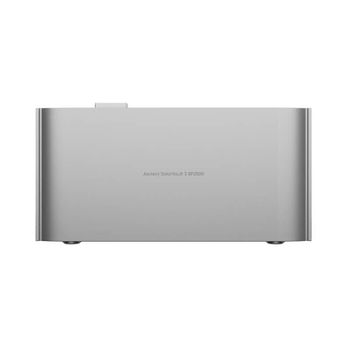

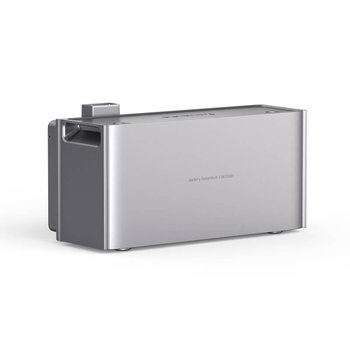

The integrated storage capacity starts at 2.52 kWh and can be expanded with up to five BP2500 battery modules per unit. This increases capacity to 15.12 kWh per tower. When combined with parallel units, the system becomes a flexible and scalable solution that grows with your household’s energy demand.

Central energy management & dynamic tariffs

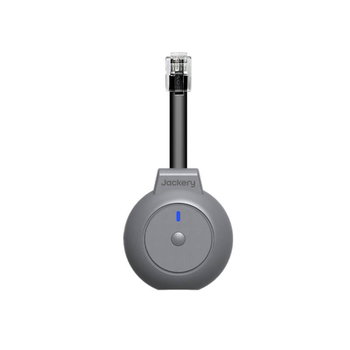

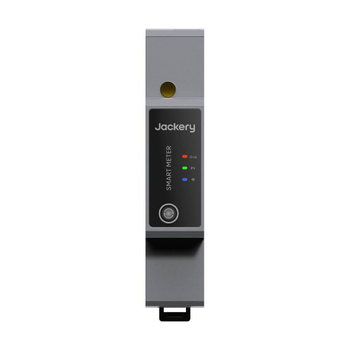

In combination with a smart energy meter, the SolarVault 3 Pro Max provides real-time insight into consumption and feed-in. The system supports multiple operating modes, including self-consumption, dynamic tariff optimization and intelligent energy management.

With dynamic electricity tariffs, the system can automatically charge when prices are low and discharge when prices rise. This ensures stored energy is actively used at the most financially or practically beneficial moments.

Control and monitoring are available via Bluetooth, Wi-Fi or Ethernet through the Jackery app. Multiple parallel units are centrally managed so that the entire system functions as one integrated solution.

Who is the SolarVault 3 Pro Max suitable for?

The SolarVault 3 Pro Max combines high AC power, direct solar input and scalable storage capacity in one integrated system. Energy storage becomes an active part of your home rather than just an addition. You make better use of your own solar generation, support higher simultaneous loads and retain full control over when and how energy is used.

* Note: If the output power exceeds 800 W, we recommend connecting the system to a dedicated circuit in the electrical distribution board that is not shared with other appliances. Have this checked or installed by a qualified electrician.
