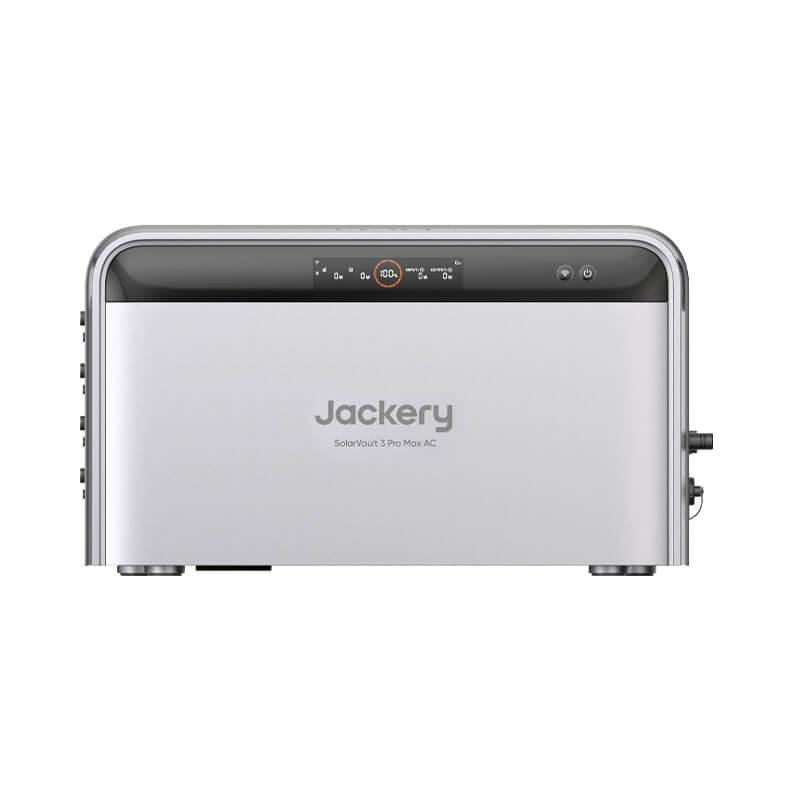

Jackery SolarVault 3 Pro Max AC | 2,5 kW - 2,52 kWh

During the day, your solar panels often generate more energy than you immediately use. Part of this surplus is fed back into the grid, while in the evening you draw electricity again. With the SolarVault 3 Pro Max AC, you store that energy first and use it later when your household benefits most. Thanks to its AC-coupled design, this system is specifically developed for homes with an existing solar installation.

The SolarVault 3 Pro Max AC is designed for households that want to add storage to their current solar panels without modifying the existing inverter or PV wiring. With a compatible energy meter, surplus energy is automatically stored and used when needed.

2500W Bidirectional AC Power

The SolarVault 3 Pro Max AC provides 2500W of bidirectional AC power per unit.* This means the system can not only charge efficiently but also continuously discharge up to 2500W into your home.

In practice, this is sufficient to support multiple household appliances at the same time. Think of lighting, refrigerator, freezer and internet, while a washing machine or dishwasher is running. The system therefore covers a substantial part of your daily electricity demand.

For larger installations, up to three units can be connected in parallel. Together, they deliver up to 7500W of AC power, making the system suitable for homes with higher simultaneous loads.

Storage capacity

The integrated storage capacity starts at 2.52 kWh per unit and can be expanded with up to five BP2500 battery modules per tower. This increases the capacity to 15.12 kWh per tower. When multiple units are connected in parallel, a flexible and scalable system is created that adapts to the energy consumption of your home.

Energy management & dynamic tariffs

In combination with a smart energy meter, the system gains real-time insight into consumption and grid feed-in. It supports different operating modes, including self-consumption and dynamic tariff optimization.

With dynamic electricity tariffs, the system can automatically charge when electricity prices are low and discharge when prices increase. Control and monitoring are handled via Bluetooth, Wi-Fi or Ethernet in the Jackery app. Multiple parallel units are centrally managed, ensuring the entire system functions as one integrated solution.

Who is the SolarVault 3 Pro Max AC suitable for?

The SolarVault 3 Pro Max AC is a logical next step for households looking to expand their existing solar installation with their own energy storage. Instead of feeding generated electricity directly back into the grid, it remains available within your home and is used when demand arises.

This transforms your solar installation from simple generation into an active energy system. You use more of your own electricity, support higher simultaneous loads and retain control over how and when your energy is used.

* Note: If the output power exceeds 800 W, we recommend connecting the system to a dedicated circuit in the electrical distribution board that is not shared with other appliances. Have this checked or installed by a qualified electrician.
