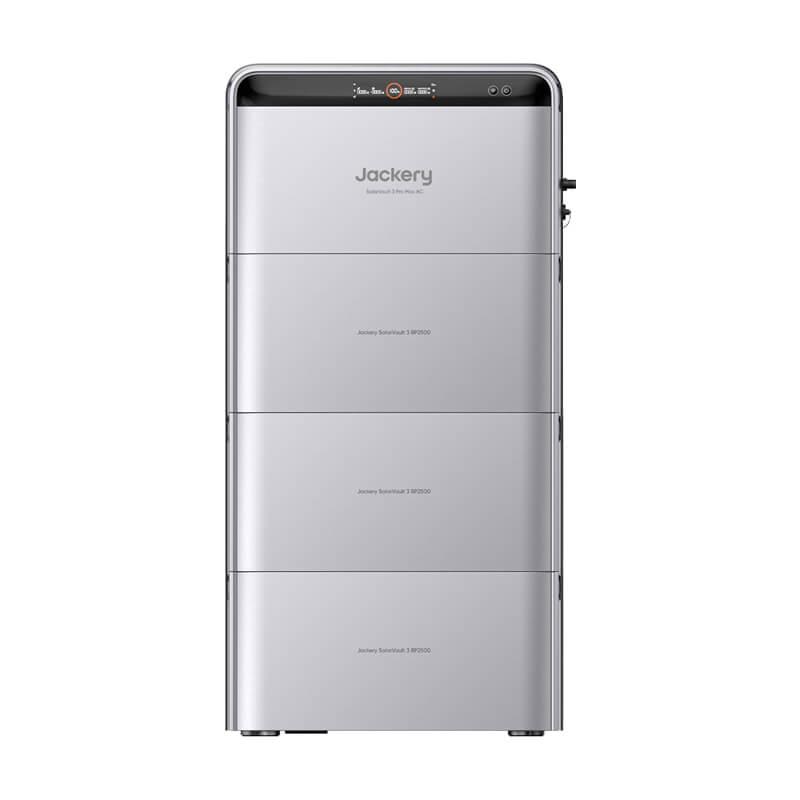

Jackery SolarVault 3 Pro Max AC + 3x BP2500 | 2,5 kW - 10,08 kWh

During the day, solar panels often generate more energy than is used directly. Part of this surplus is fed back into the grid, while electricity demand typically increases in the evening. With the SolarVault 3 Pro Max AC, this excess energy is captured and stored for later use. This ensures that more of your own energy remains available within the home, exactly when your household needs it.

This bundle combines the SolarVault 3 Pro Max AC with three BP2500 battery modules. Together they form a complete home battery system with a total storage capacity of 10.08 kWh. This expands the system into a powerful energy storage solution for households that want to make more intensive use of their existing solar installation and use the majority of the solar energy generated during the day within their own home.

The SolarVault 3 Pro Max AC is designed for homes with an existing PV installation. Thanks to its AC-coupled operation, the system connects to the AC side of the home and works together with your current inverter or microinverters. Solar panels do not need to be reconnected and no additional PV cabling is required. In combination with a compatible energy meter, surplus energy is automatically stored and used when consumption increases.

2500W bidirectional AC power

The SolarVault 3 Pro Max AC provides 2500W of bidirectional AC power per unit. This means the system can not only charge, but also discharge up to 2500W continuously to your home.*

In practice, this is sufficient to support multiple household appliances at the same time. For example lighting, refrigerator, freezer and internet equipment, while a washing machine or dishwasher is running simultaneously. The system can therefore cover a significant portion of the daily electricity consumption.

Energy management & dynamic tariffs

When combined with a smart energy meter, the system gains real-time insight into consumption and energy export. It supports several operating modes, including self-consumption and dynamic tariff optimization.

With dynamic electricity tariffs, the system can automatically charge when electricity prices are lower and discharge when prices rise. Control and monitoring take place via Bluetooth, Wi-Fi or Ethernet in the Jackery app. Multiple units connected in parallel are also centrally managed within the app, allowing the entire system to operate as one integrated solution.

Who is this bundle suitable for?

With three BP2500 batteries, the SolarVault 3 Pro Max AC becomes an energy system with 10.08 kWh of storage capacity. This provides enough room to store the majority of the solar energy generated during the day for later use, for example in the evening or during periods of higher simultaneous electricity demand.

This allows an existing solar installation to evolve from a system that only generates electricity into one that actively stores and reuses energy within the home.

Note: For output power above 800 W, we recommend connecting the system to a dedicated circuit in the electrical distribution panel that is not shared with other appliances. This should be checked or installed by a certified electrician.
